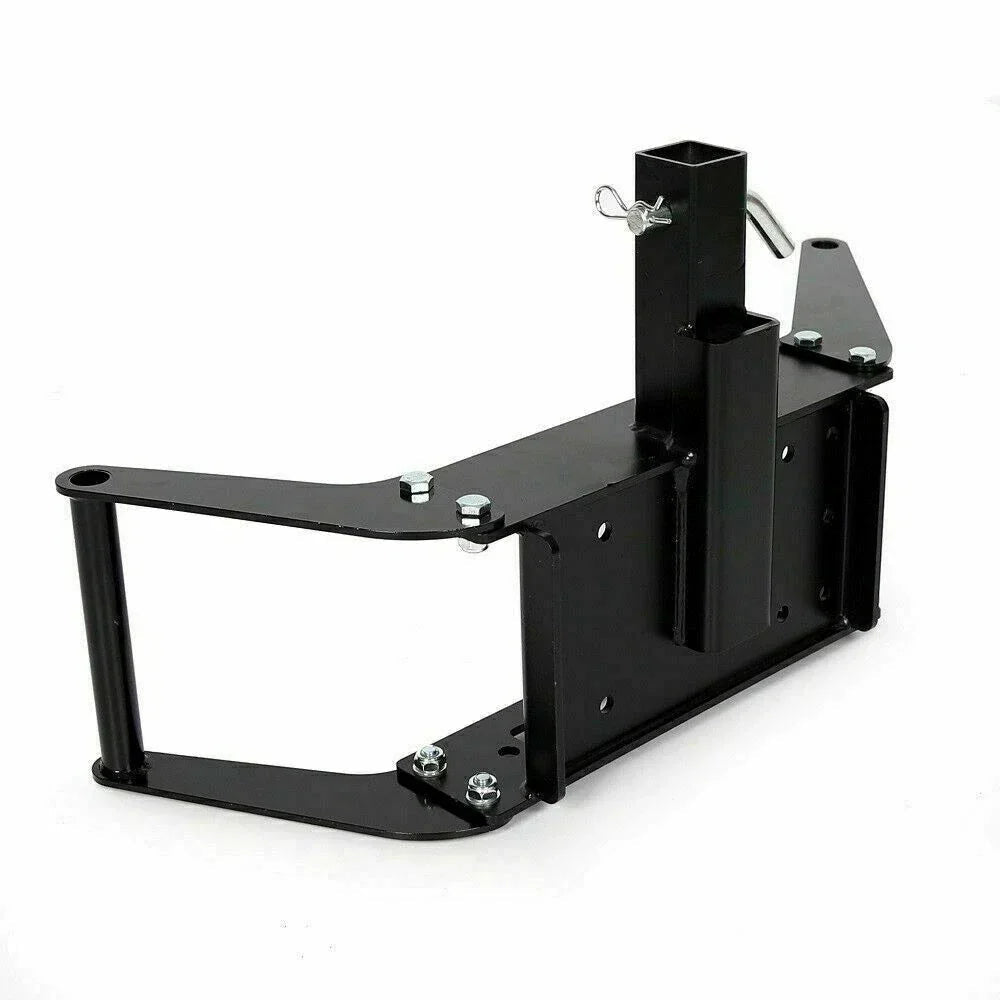

Receiver-ready
A 50 mm shank fits a compatible 2-inch receiver, so the winch can be removed or transferred instead of being permanently fixed in place.
-
files/c64cf44b-2fe2-4031-9f66-73e545e43e9a.jpg
-
files/20d740ab-b7ff-451f-84bb-f20912636e5f.jpg
-
files/69d84c75-2ced-4a24-b290-b2df04e6c512.jpg
-
files/ff6602a0-fc49-433a-9b3f-ab84deb4657f.jpg
-
files/851a8c81-109d-4578-bd9c-bddc421c55f3.jpg
-
files/750e46e8-25d5-434b-b6fd-dc1dbbe572fb.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlate1.jpg
-
files/1_8305e42d-3747-4861-b62a-279d64ce7bd3.jpg
-
files/6a8e601c-2914-42e7-9245-2c901b4eae70.jpg
-
files/0014.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlate3.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlate4.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlate5.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlate6.jpg
-
files/TYTWinchMountReceiverHitchWinchMountingPlatemain.jpg
2 inchReceiver fitment
8K-15K lbCommon winch fitment
6 mmSteel mounting plate
RemovableFront or rear setup

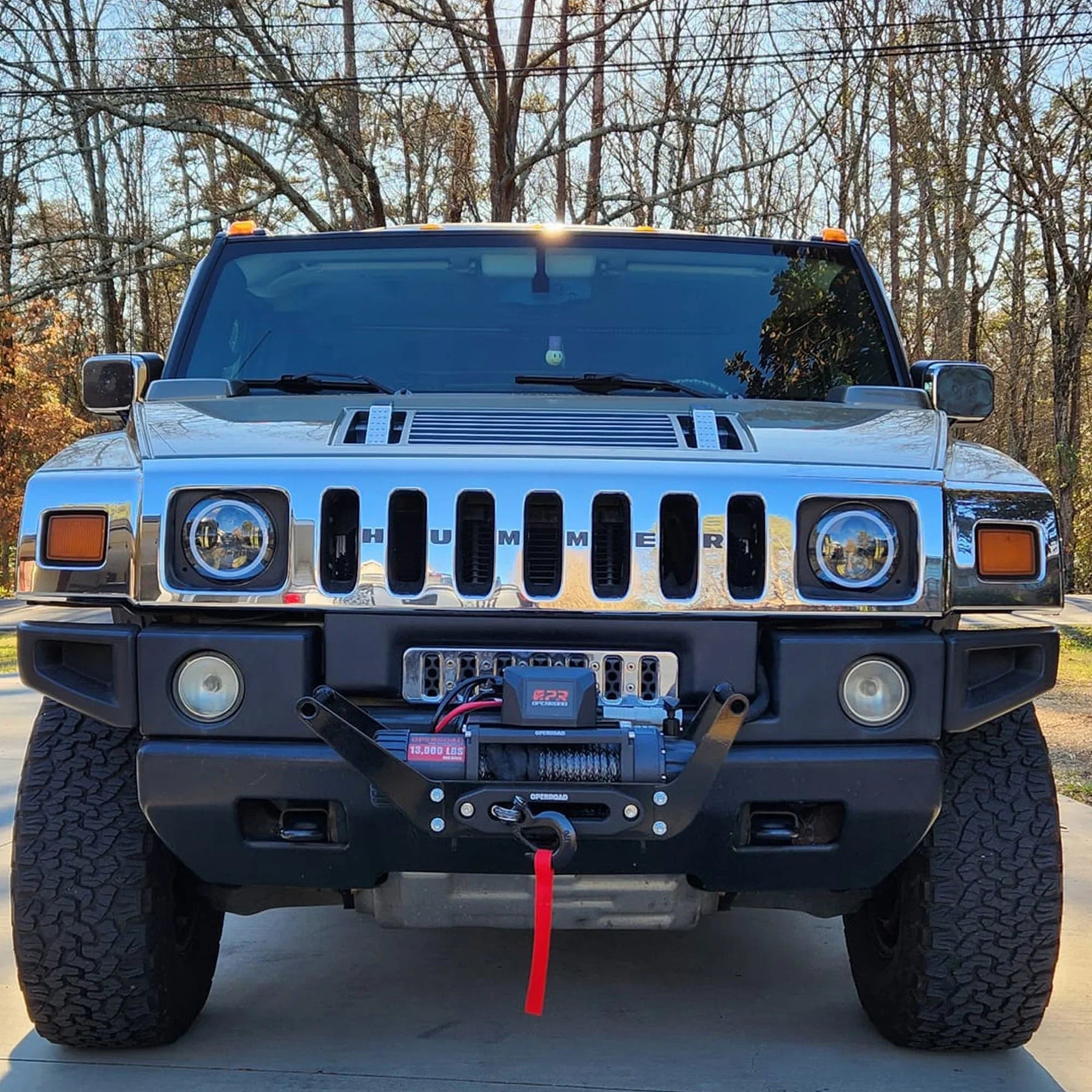

Built for Australian 4WD recovery

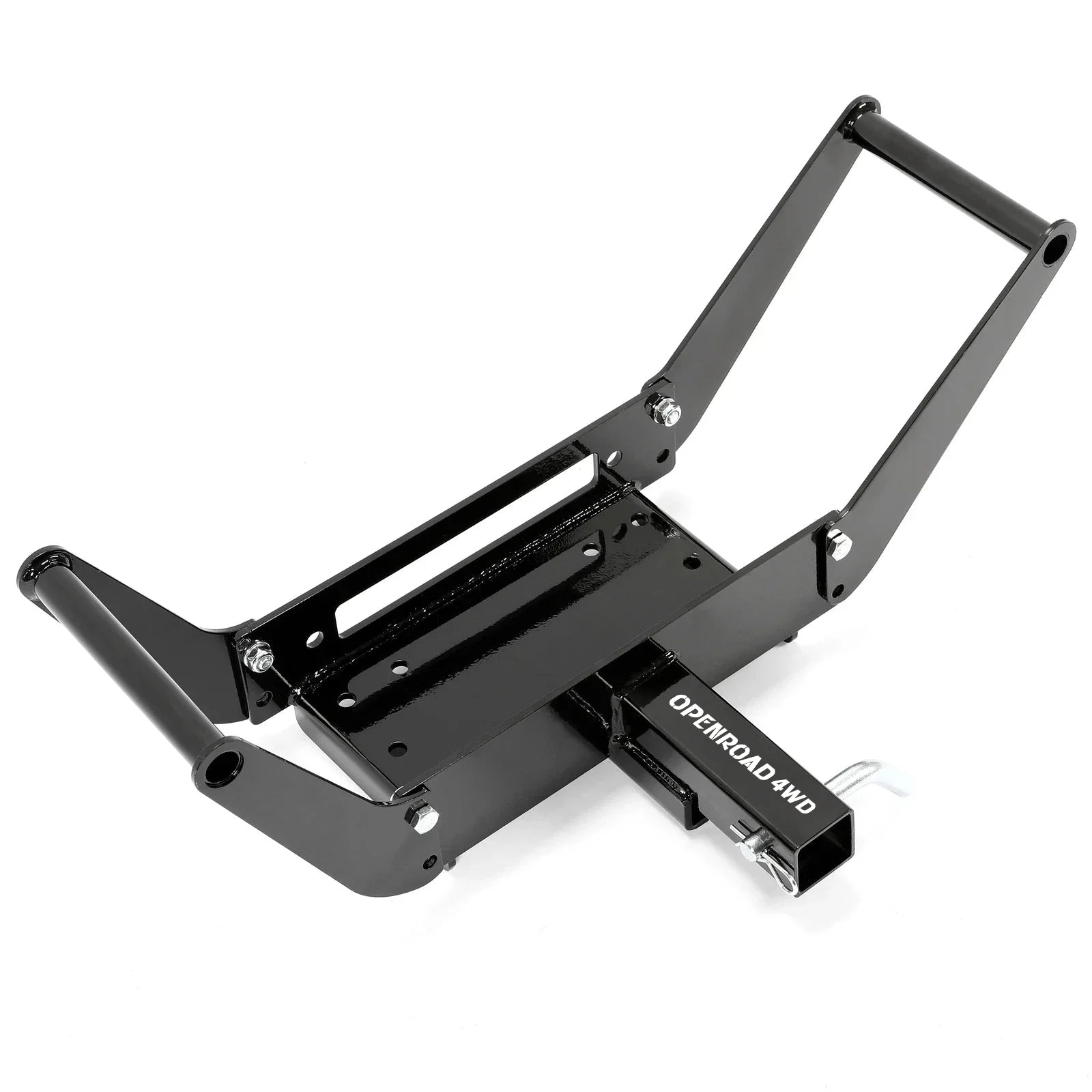

A removable winch platform for the places a fixed setup cannot cover.
Add recovery capability without permanently mounting a winch to one end of your vehicle. Fit the plate to a compatible 2-inch receiver, secure it with the hitch pin and remove it again when the job is done.
View purchase options
$99.99 AUD
GST included
Portable recovery
For a compatible, recovery-rated receiver
Designed around real vehicle setups
Practical hardware. No unnecessary complication.

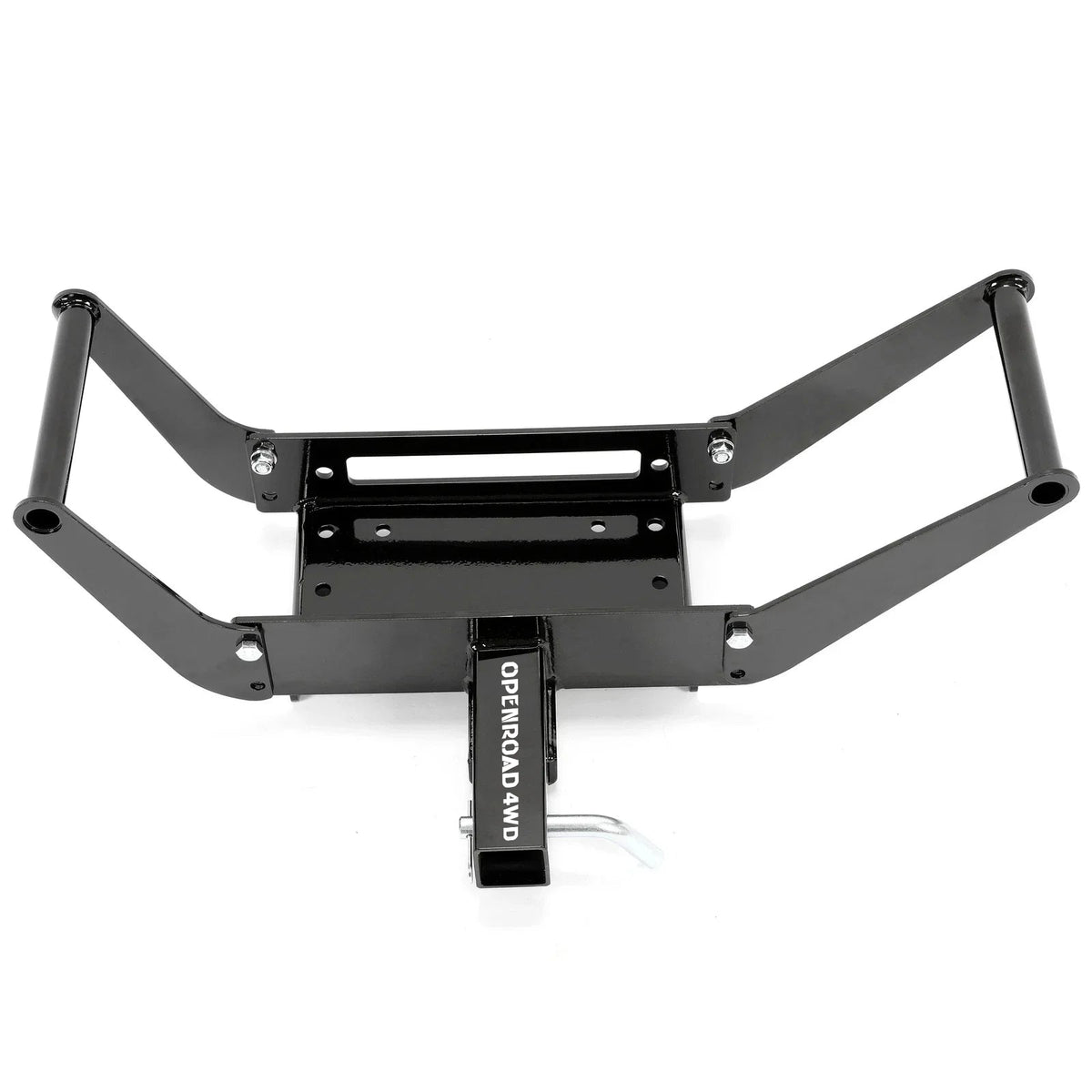

Adjustable support arms
Folding side arms help stabilise the assembly against the vehicle and fold down neatly when the mount is stored.
Fairlead-ready layout
Integrated fairlead slots and multiple mounting holes suit common winch and fairlead patterns.
Protected steel construction
A 6 mm steel plate with a black powder-coated finish helps resist knocks, weather and corrosion.
Flexible by design
One winch. More ways to recover.
A fixed winch stays at one end of one vehicle. This receiver mount gives compatible 4WDs, work utes and trailers a more flexible option.
- Transferable setupMove between compatible rated receivers.

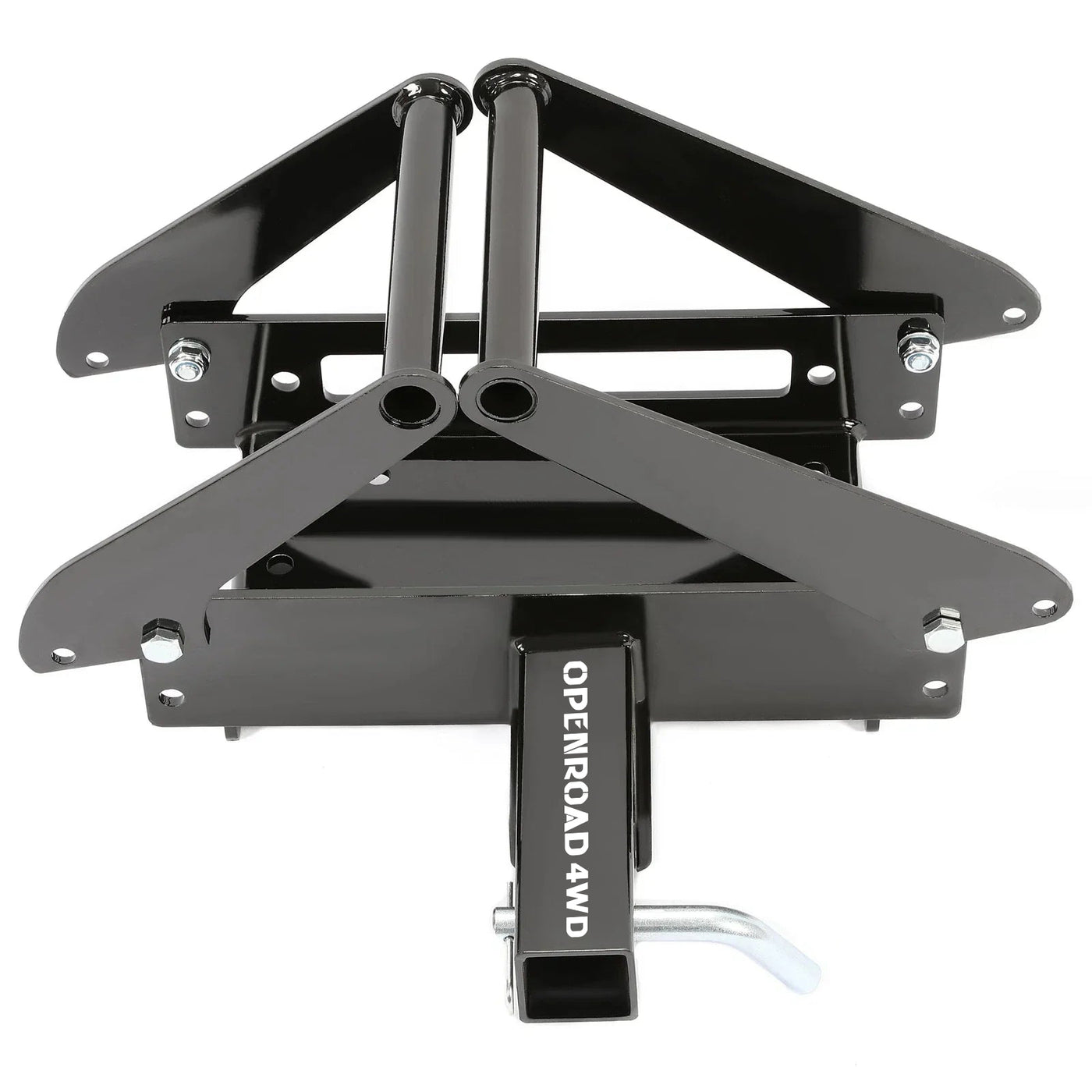

- Easy to storeFold the arms and remove the assembly after use.
- Less exposureKeep the winch out of the weather when it is not needed.

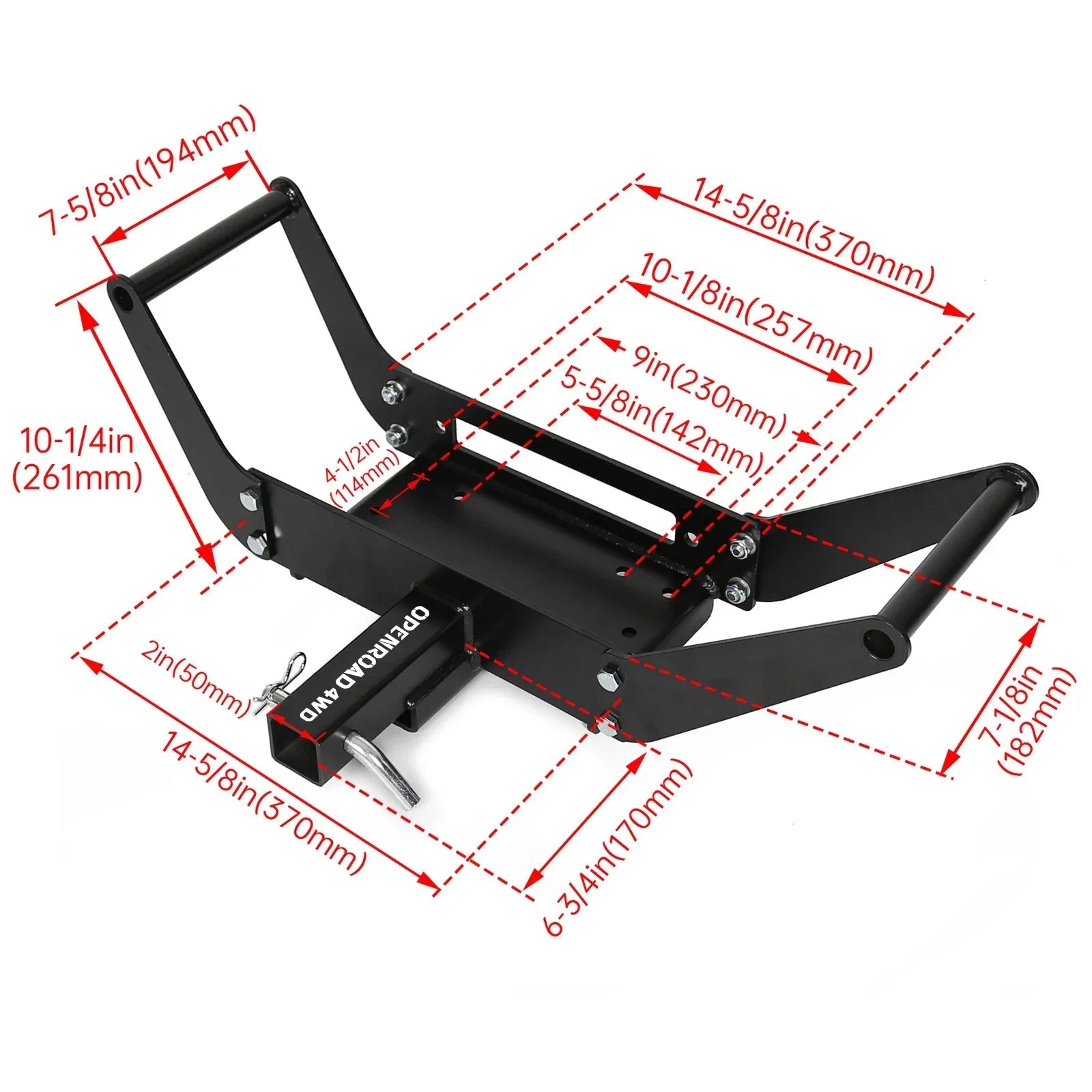

Check the fit before checkout
Key dimensions, clearly shown.
Compare your receiver, winch bolt pattern, fairlead spacing and vehicle clearance before ordering.
Receiver shank50 mm / 2 inch
Overall widthApprox. 370 mm
Support frame depthApprox. 261 mm
Receiver shank lengthApprox. 170 mm
Plate thickness6 mm steel
Winch fitmentCommon 8,000-15,000 lb
Mounting-hole spacing is shown on the product diagram. Allow for normal
manufacturing and measurement tolerances.
Straightforward installation concept
Mount. Pin. Prepare.
Fit the winch
Bolt your compatible winch and fairlead to the plate with correctly rated hardware and follow the winch manufacturer's instructions.
Insert the receiver
Slide the shank into a compatible rated 2-inch receiver and secure it with the hitch pin and retaining clip.
Set and test
Position the support arms, check every clearance and complete a no-load function test before recovery use.
Compatibility and safety
Your recovery system is only as strong as its lowest-rated part.
The plate does not increase the rating of your receiver, recovery points, winch, rope or vehicle. Confirm every component is appropriate for the intended load and recovery direction.
01
ReceiverCompatible 2-inch opening with an appropriate recovery rating.
02
Winch patternMatch the mounting holes and fairlead spacing to the diagram.
03
Vehicle clearanceCheck the bumper, bodywork, wiring and approach angle.
04
Recovery practiceUse rated gear, a line damper and safe winching procedures.
Frequently asked questions
Know before you go.
Useful answers for Australian 4WD owners planning a portable winch setup.
Will this fit my 4WD?
It requires a compatible 50 mm (2-inch) receiver with suitable load and recovery ratings. Check receiver depth, pin position, bumper shape and vehicle clearance before purchase.
Which winches can I mount?
The plate is designed around common 8,000-15,000 lb winches. Bolt patterns vary, so compare your winch and fairlead measurements with the dimension image before ordering.
Can it be used at the front and rear?
Yes, where the vehicle has a compatible rated receiver and sufficient clearance. Always follow the receiver and vehicle manufacturer's limits.
Is the winch included?
No. This listing is for the mounting plate and pictured installation hardware only. The winch, fairlead, wiring and vehicle are not included.
Can I leave it installed permanently?
The main benefit is removability. Take the assembly off when it is not needed, keep it dry and inspect the plate, pin, fasteners and coating before each use.
