Extended mounting surface
The longer base provides additional reach when the ideal awning position sits away from the rack mounting point.
-
files/openroad4wd-extended-awning-mounting-plate.jpg
Rhino-RackCompatible fitment
128 mmVertical plate height
68 mmPlate width
ExtendedMulti-slot mounting plate
Rhino-Rack compatible awning mounting
Give your awning more mounting reach.

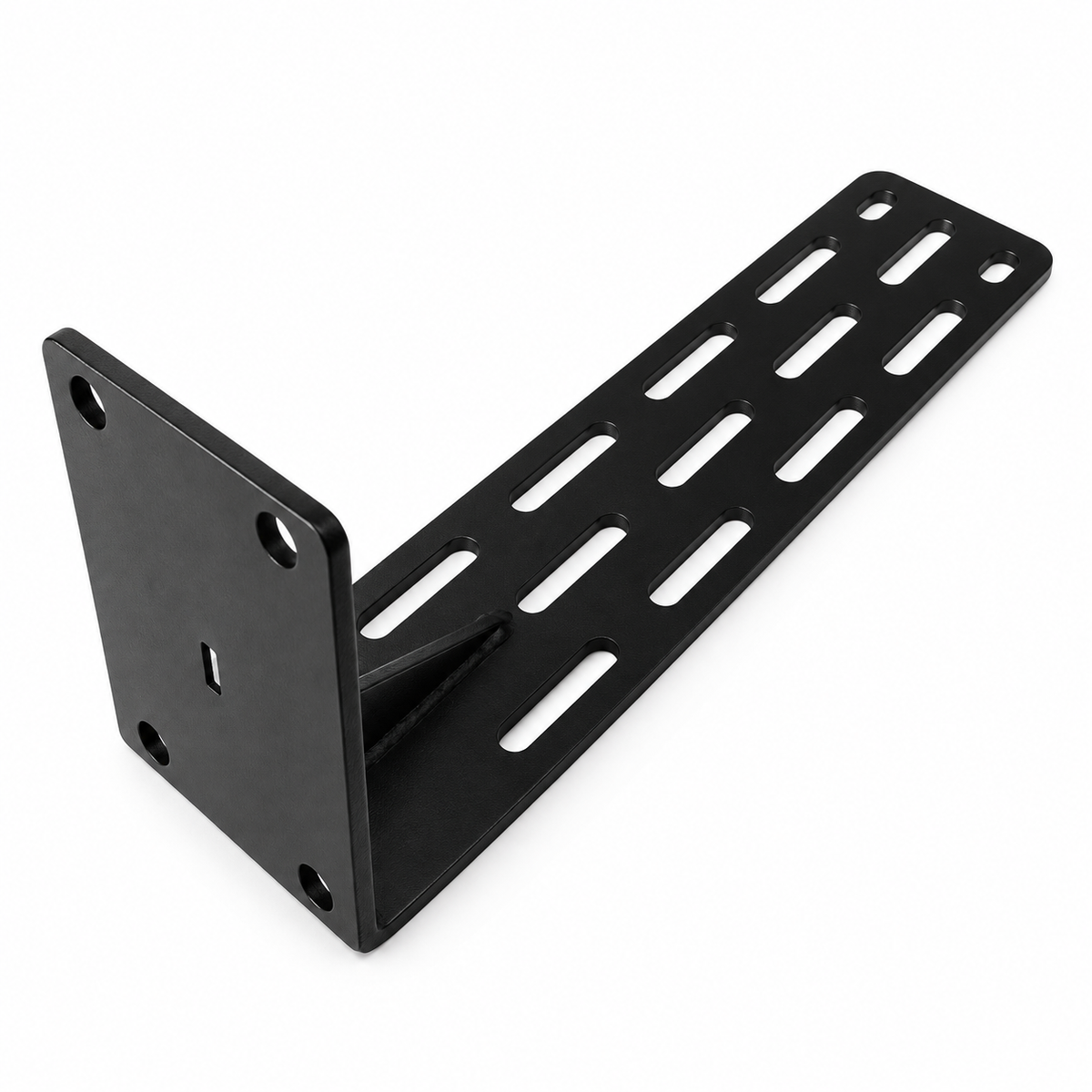

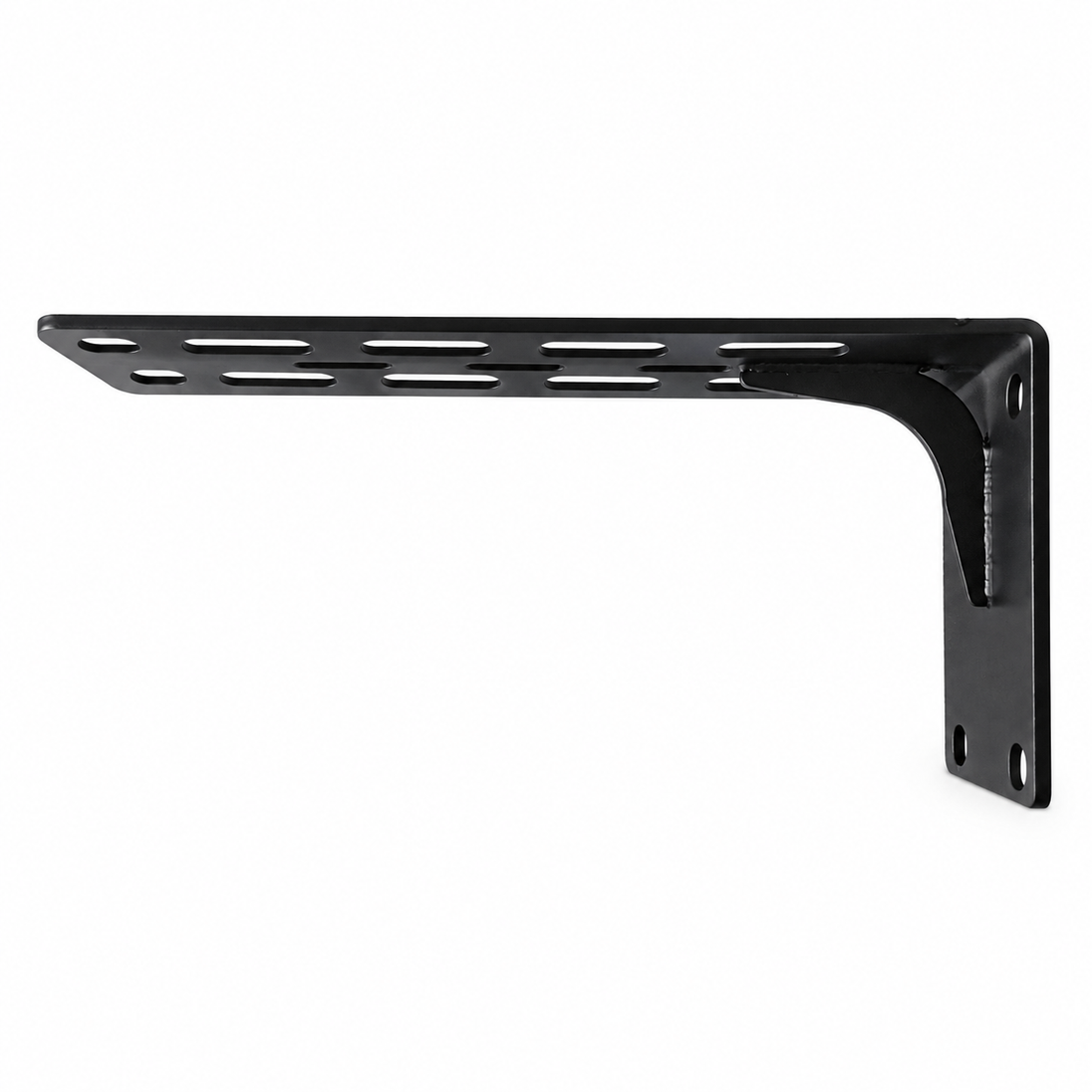

This extended L-shaped mounting plate is designed to fit compatible Rhino-Rack roof-rack setups. Multiple slots provide extra adjustment when aligning an awning with the rack channel and mounting hardware.
- Compatible with suitable Rhino-Rack mounting configurations
- Extended base for a wider choice of fastener positions
- Central gusset supports the upright mounting face
Choose quantity and buy
$50.00 AUDGST included
Compatibility first
Made to work with compatible Rhino-Rack setups.
The slotted layout gives installers flexibility to align the plate with a suitable Rhino-Rack channel or mounting point. Confirm the rack profile, fastener size and awning hole pattern before installation.
Rhino-Rack compatible
Simple hardware, useful adjustment
More flexibility between the rack and awning.

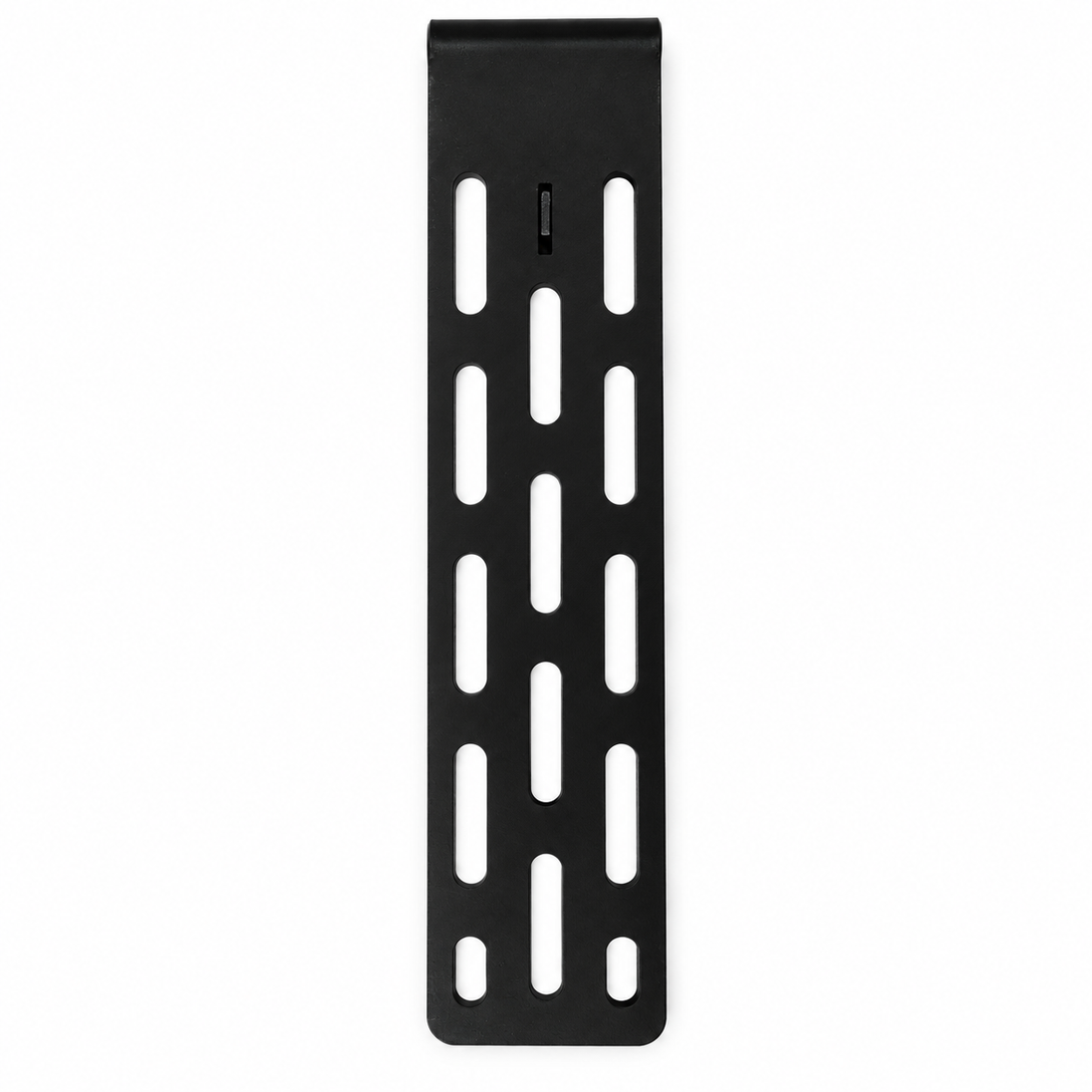

Multiple slotted positions
Long slots allow practical fore-and-aft adjustment and make fastener alignment easier during installation.

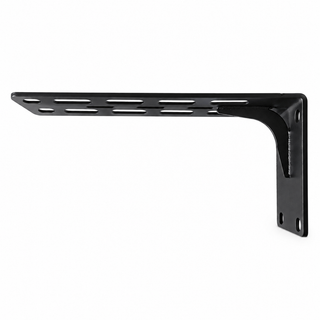

Reinforced L-shaped form
A central gusset links the horizontal and vertical faces to support the mounting structure.

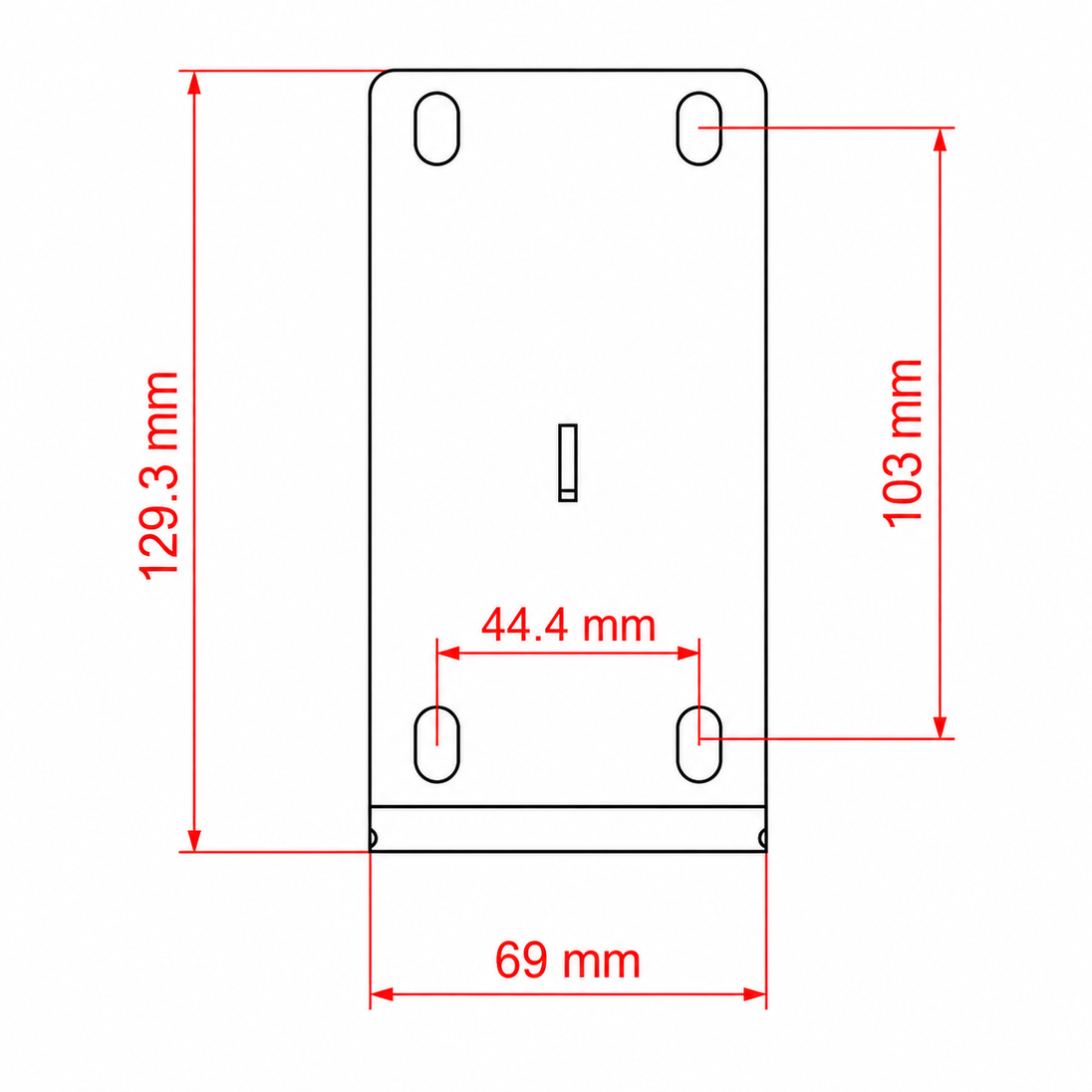

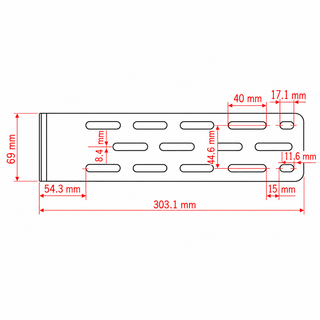

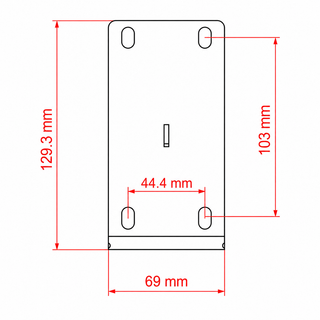

Known dimensions
Check the fit before ordering.
Compare these confirmed measurements with the Rhino-Rack mounting area, awning bracket and vehicle clearances.

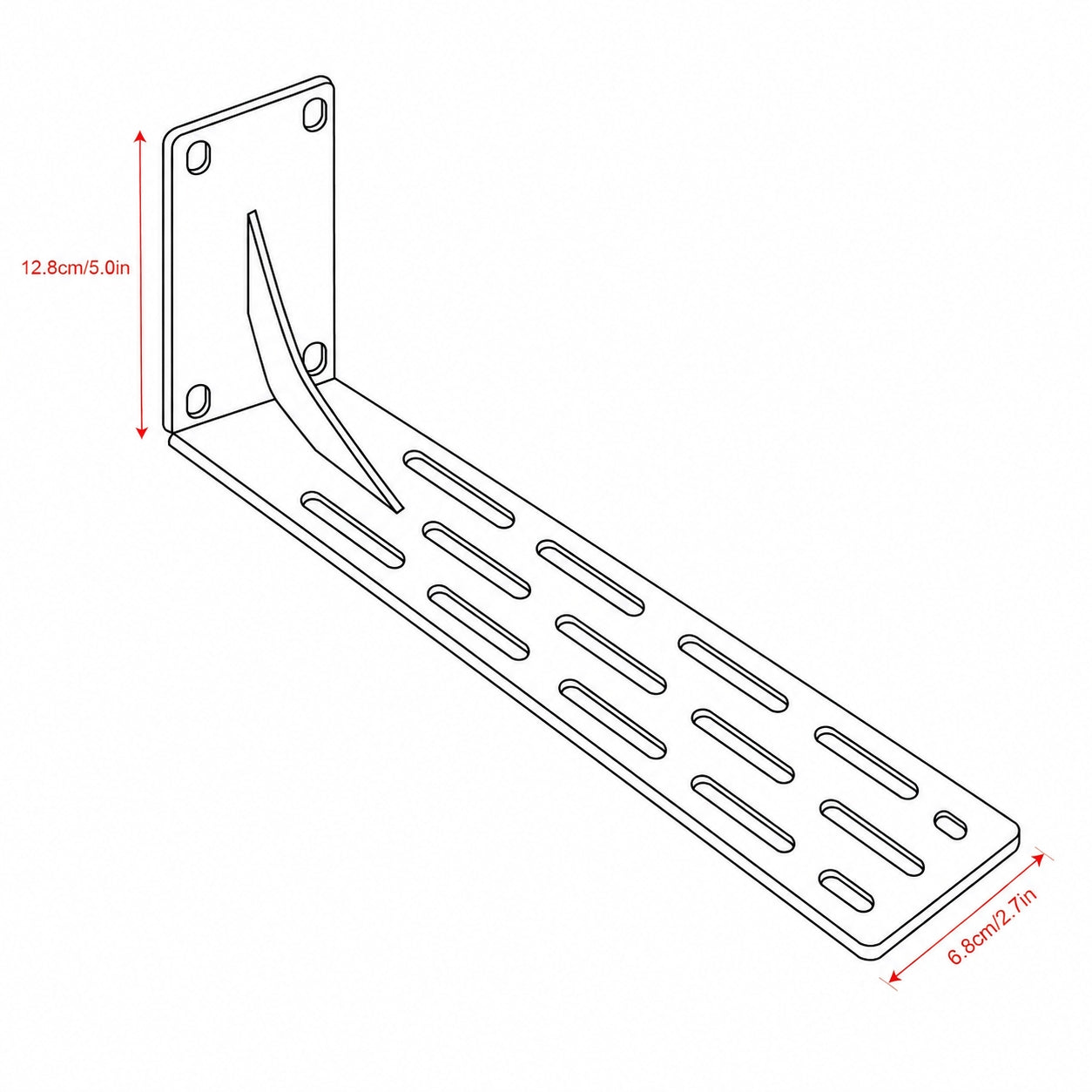

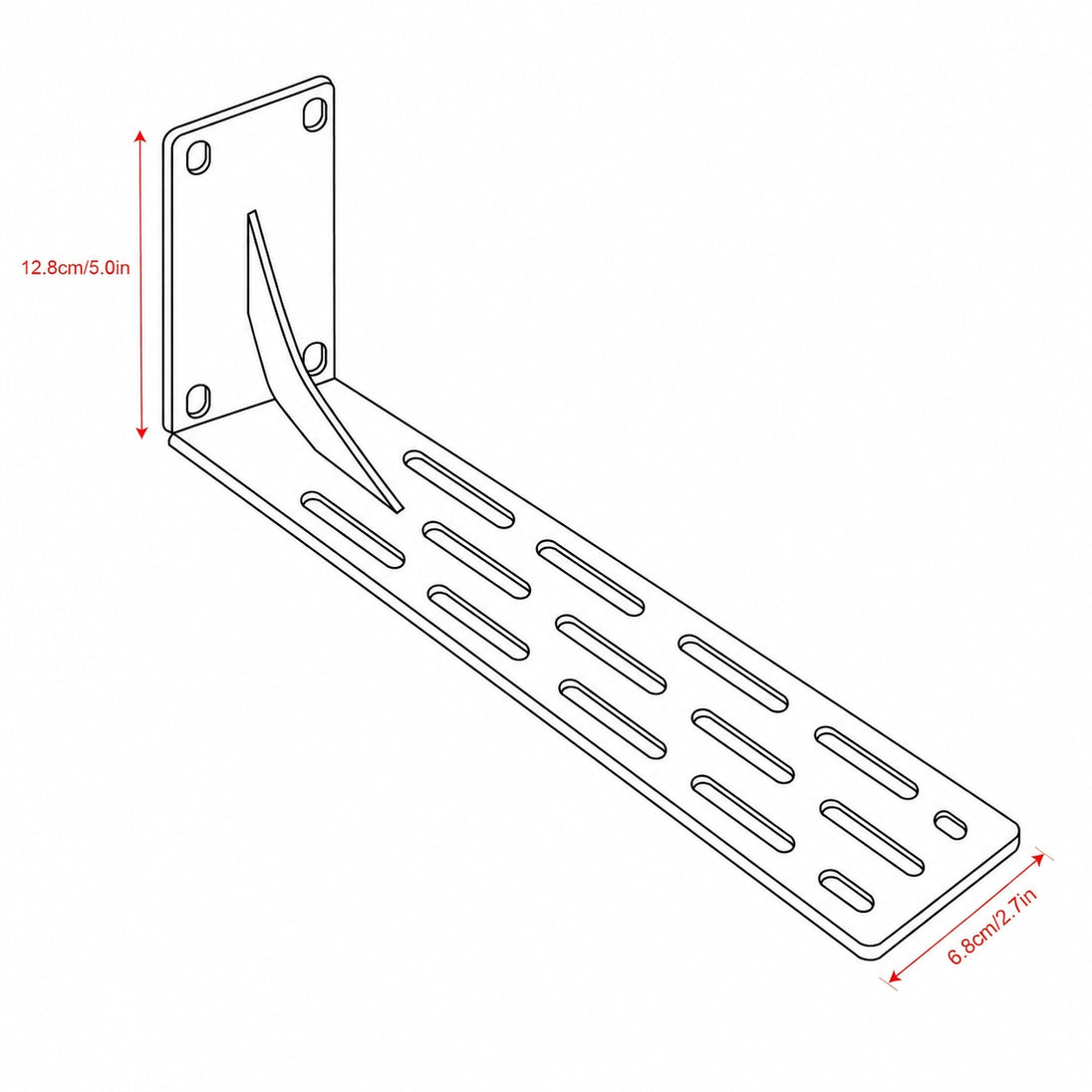

Vertical plate height128 mm / 5.0 in
Plate width68 mm / 2.7 in
Before installation
- 1
Check the rackConfirm the Rhino-Rack channel or mounting point accepts the intended fasteners.
- 2
Check the awningCompare its mounting holes and bracket position with the plate slots.
- 3
Check clearancesAllow space around the vehicle body, roof-rack accessories and awning case.
- 4
Check every ratingFollow the rack, vehicle and awning manufacturers' load and installation limits.
Frequently asked questions
Fitment, made clear.
Does it fit Rhino-Rack roof racks?
Yes. The plate is designed for compatible Rhino-Rack mounting configurations. Because rack profiles and awning installations vary, confirm the channel, fasteners, hole spacing and clearances before ordering.
Why use an extended mounting plate?
The extended base adds positioning range between the rack mounting point and the awning, while the repeated slots provide more choices for fastener placement.
What measurements are confirmed?
The vertical plate is 128 mm high and the plate width is 68 mm. Confirm all other required dimensions against your rack and awning before installation.
Fitment note
Rhino-Rack is a trademark of its respective owner. Compatibility refers to suitable mounting configurations and does not imply endorsement. Always use correctly rated fasteners and follow the vehicle, rack and awning manufacturers' instructions.
Compatible mounting flexibility
Set up your awning on a compatible Rhino-Rack system.
$50.00 AUDGST included
Choose quantity and buy
