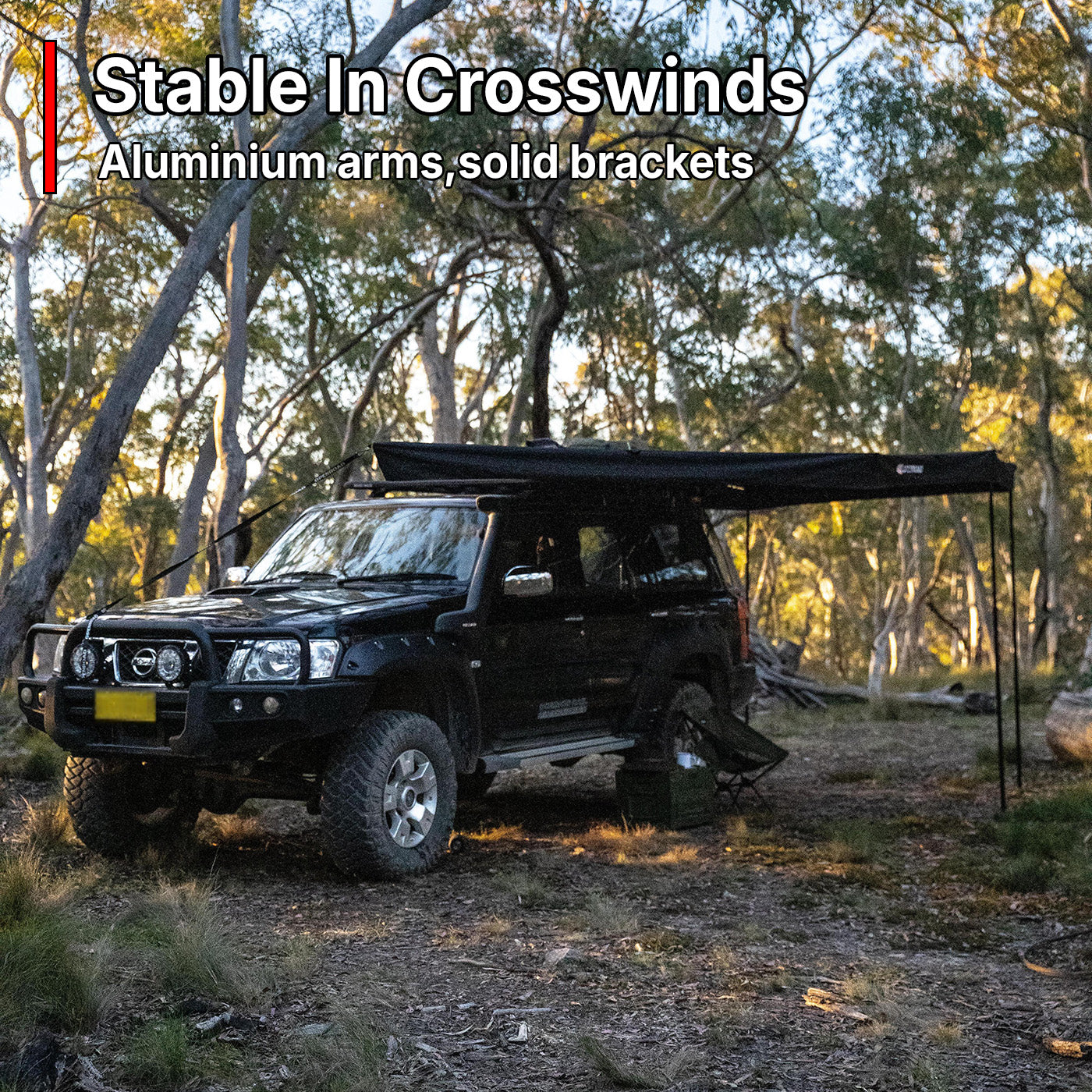

Aluminium Alloy Swing Arms & Heavy-Duty Hinges
We love the outdoors — wind included. But when conditions turn, your awning needs real support. That’s why OPENROAD uses dual-layer aluminium alloy swing arms that are built to resist corrosion, paired with reinforced bracing and heavy-duty hinges for confident, stable deployment. Strong where it counts, lighter on your roof setup — made for real Aussie touring.

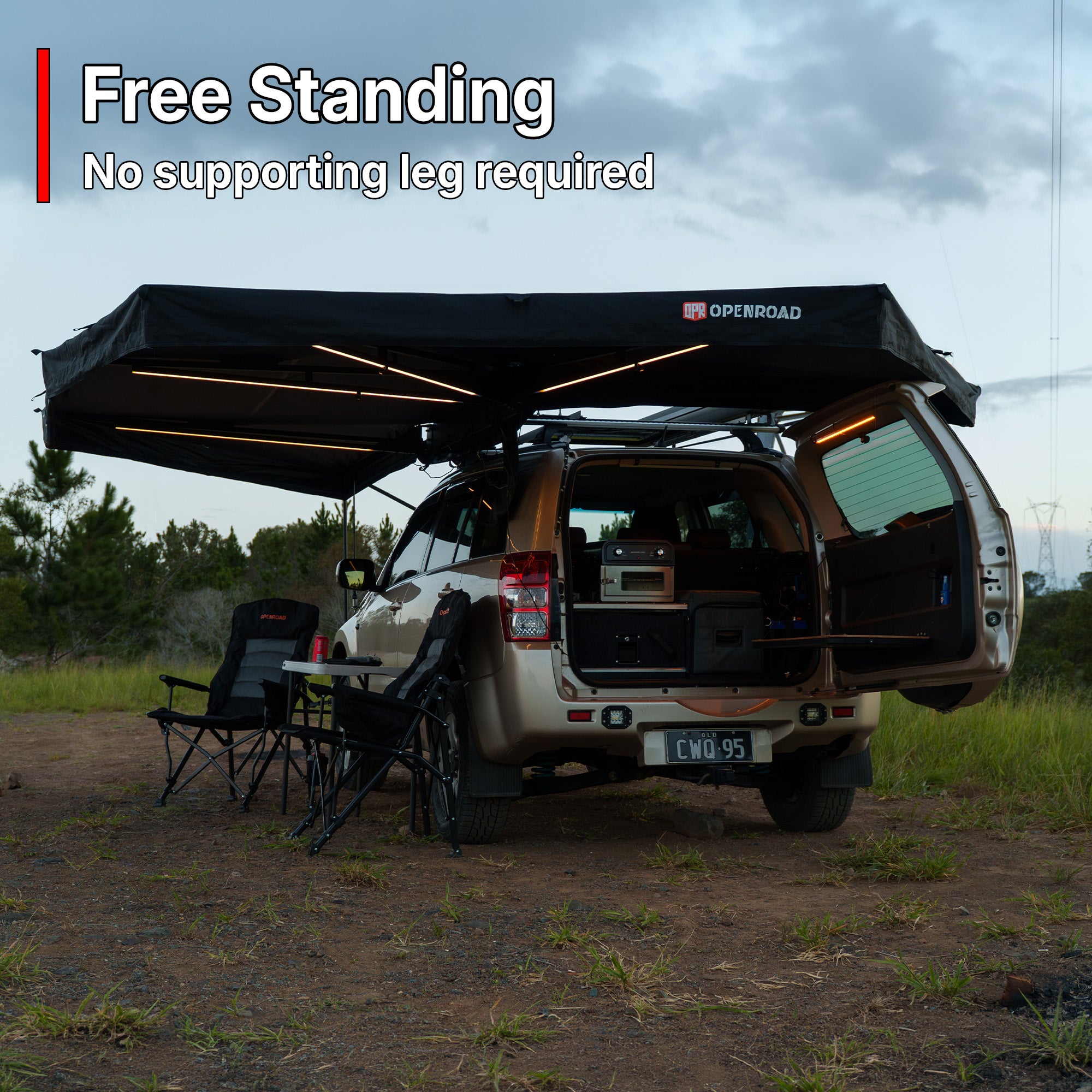

OPENROAD 270 Awning Wind Testing
Our 270 freestanding awning was rigorously wind-tested in real-world Melbourne conditions. Through open-air trials, we determined its freestanding rating of 30 km/h and pegged rating of 60 km/h. Our tests compared BOM forecast data with actual onsite wind measurements to ensure reliable, real-world results. Learn more...

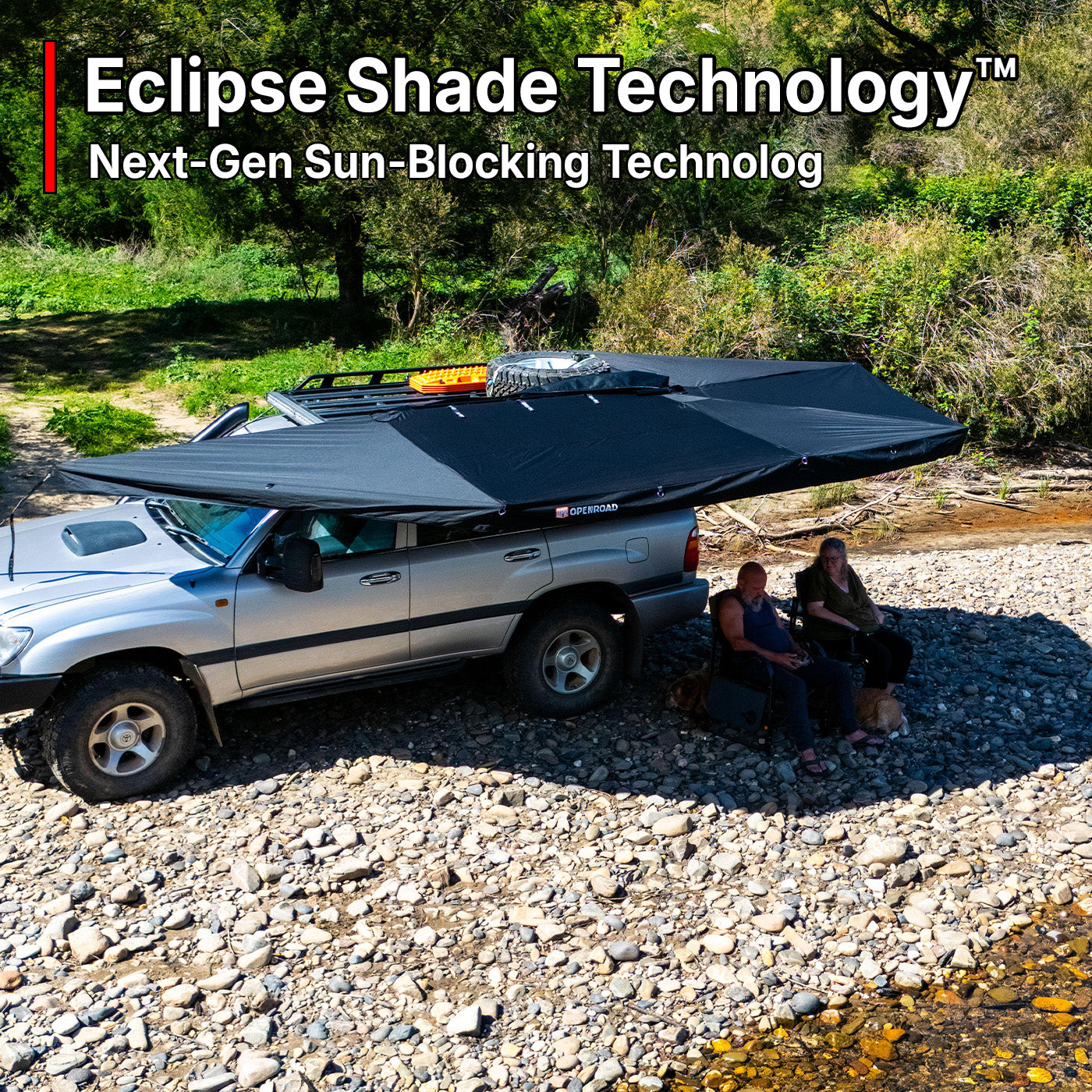

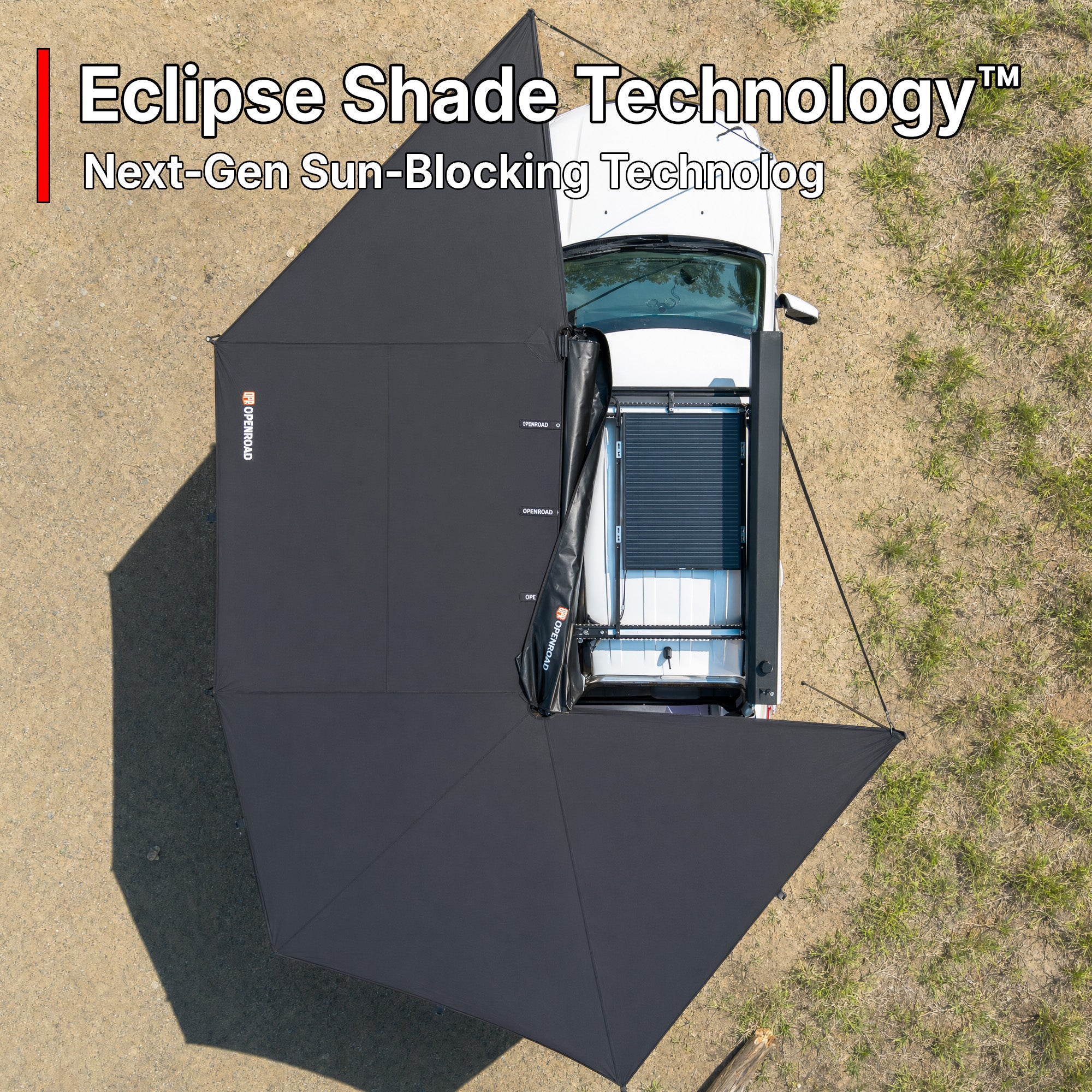

Eclipse Shade Technology™️
Compared to standard PU coatings, the OPENROAD 270 awning is powered by our next-gen Eclipse Shade Technology™️ — a high-density blackout system engineered to block harsh Aussie UV and slash tent temperatures. Combined with durable 230gsm Oxford polyester and a 3000mm waterproof rating, it delivers cooler shade, stronger UV protection and reliable rain defence. Wherever you camp, Eclipse Shade keeps you safe, comfortable and ready for the elements. Learn more...

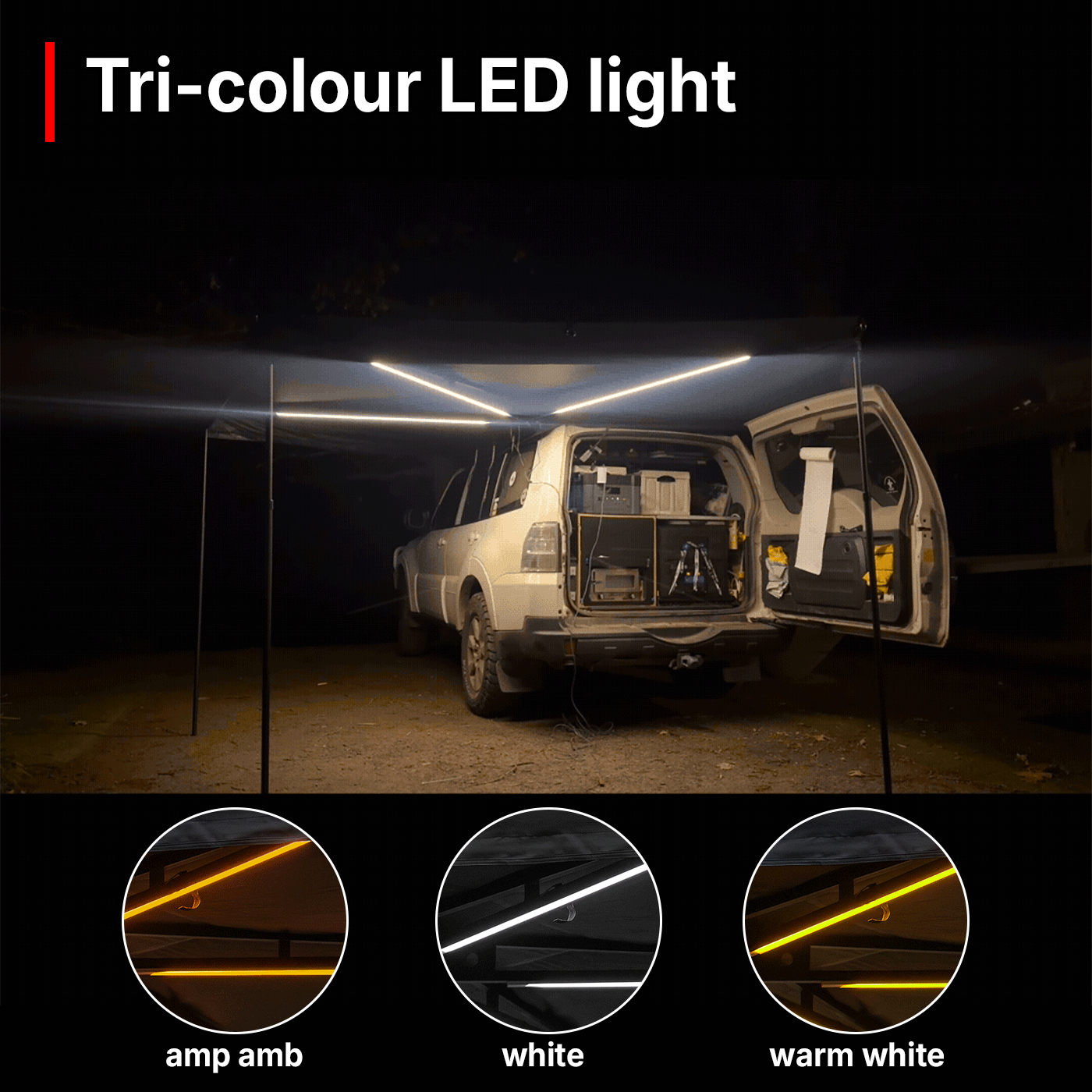

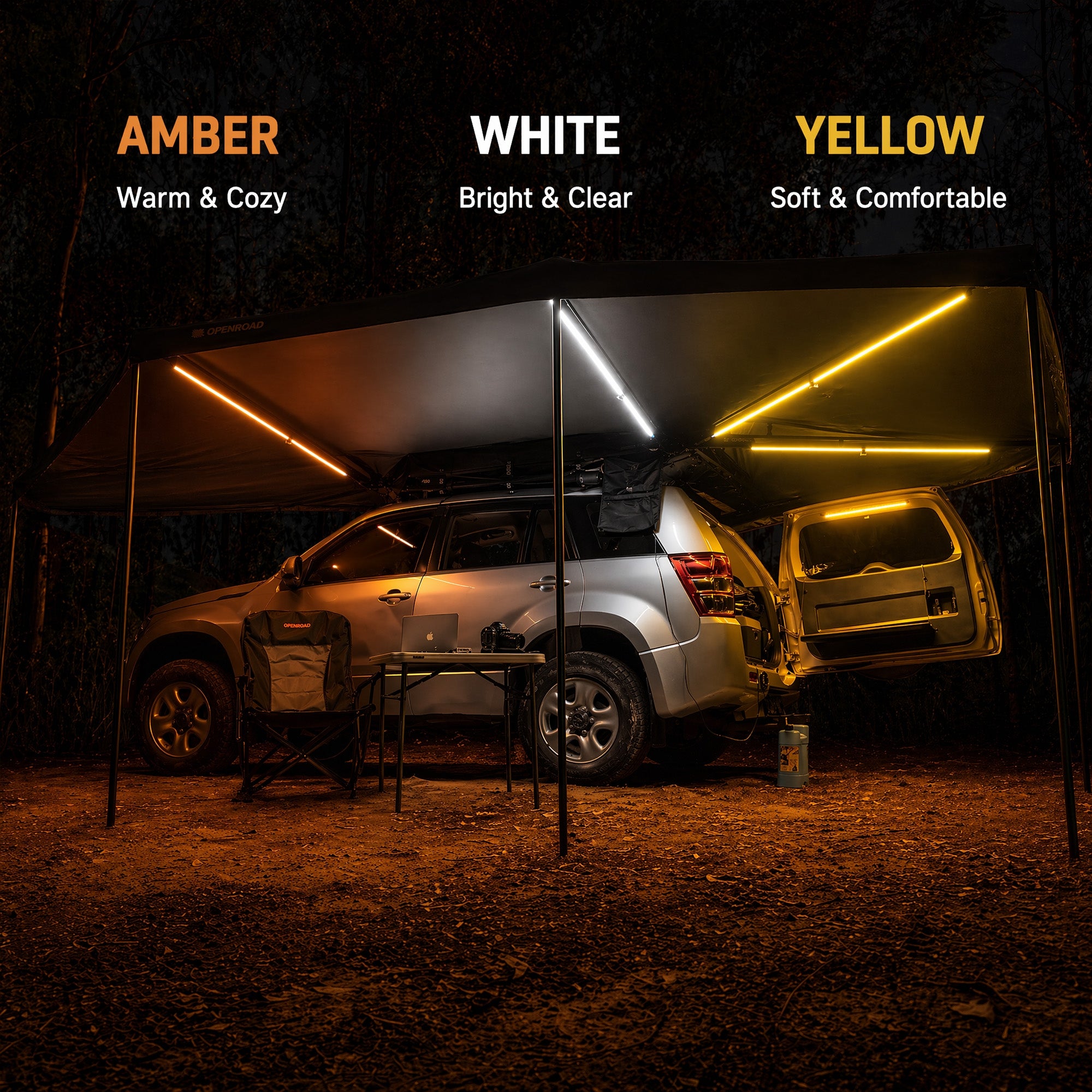

Three colour LED light
Three colour LED light
Ever felt like your camp lights were too harsh — or just not right? Each OPENROAD awning features an integrated, dimmable tri-colour LED strip with white, warm yellow and amber modes. Cook in bright white, unwind in warm light, or switch to amber to help reduce bugs around camp. Less gear in your rig, more freedom under the awning

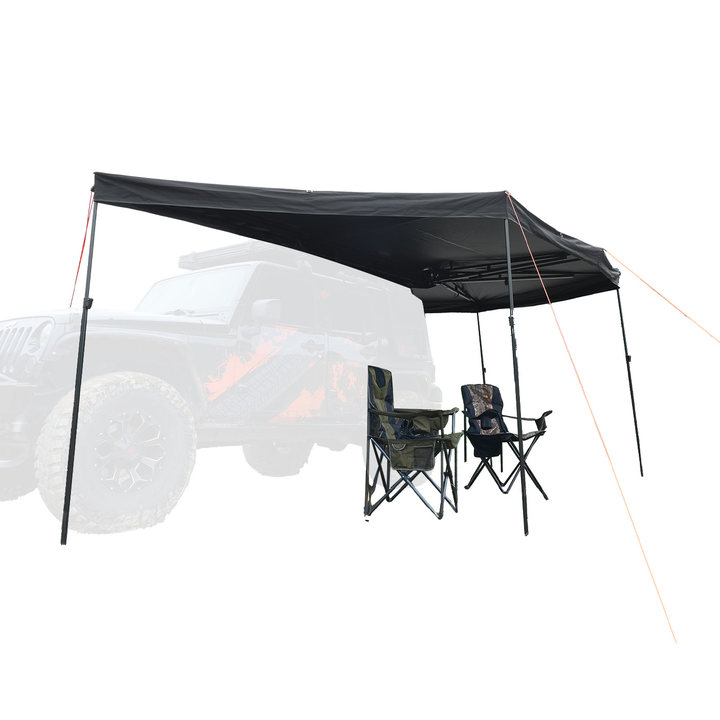

Drainage Support Pole
Drainage Support Pole
Click it in and your awning stops being a puddle tray—it becomes a roof. This compact support lifts the canopy to create a positive drainage fall that channels rain to the edge and off in seconds, so there’s no pooling, no sag and less flap when it’s bucketing down. Your camp stays drier, the fabric and arms take less strain, and pack-up is cleaner with no surprise tip-outs.
| Weight | 29kg (63.9lb) |
|---|---|

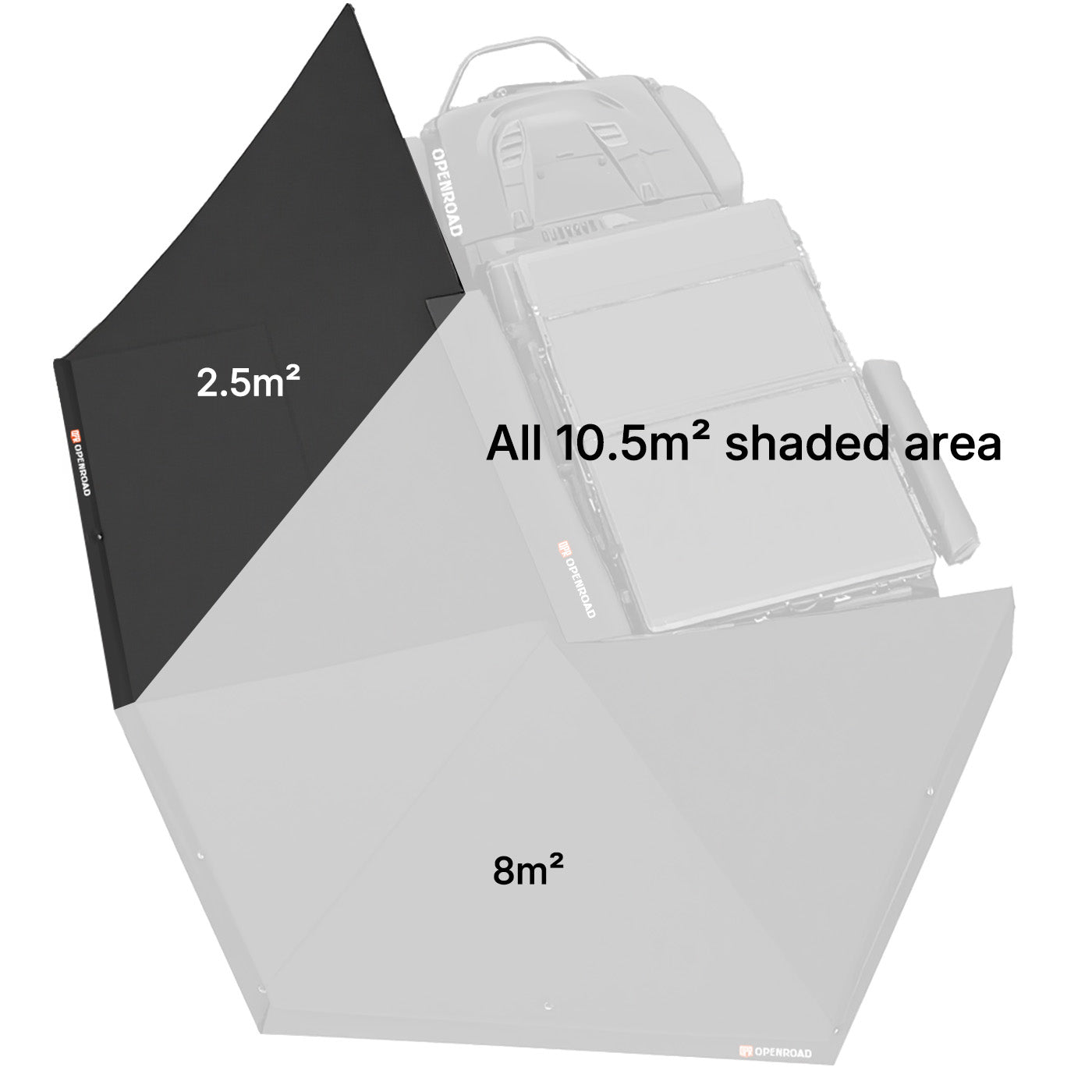

| Coverage | 270°, 10.5m² (110.5 ft²) |

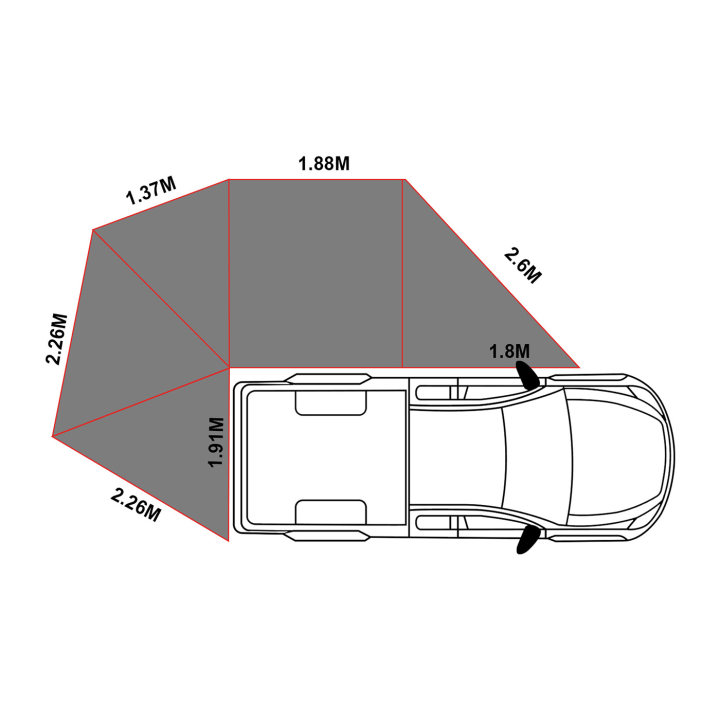

| Dimensions(open) | See diagram below |
| Dimensions(closed) | 2.1 x 0.3 x 0.2m (82.7 x 10.6 x 8.7) |
| Sun screen level | UV50++ |
| Waterproof | 3000mm |
| Frame material | Aluminum alloy |
| Awning Material | Made from waterproof 230gsm polyester, notably enhanced with a blackout coating that blocks up to 95% of UV rays |
| Wind Rating | Freestanding -30 km/h | Support legs and guylines - 60 km/h |
| Number of pull-down legs | 6 * Pull-down legs |
| Adjustable integrated pull-down leg | Adjustable range: 1.2 - 2.2m (47.5" to 90") |
• 3 Mounting brackets
• USB power cord
• 2 Ratchet rope
• Black storage bag
• 6 mounting piece
• 4 wind rope
• 4 heavy duty ground stakes
• 2 wrenches
• 4 support rod• 2 retractable support rod
• Includes assorted screws and caps
Rear Tailgate Clearance (Will it hit the awning?)
Rear Tailgate Clearance (Will it hit the awning?)
Whether your tailgate will clear the awning depends on your roof rack height and how high your tailgate opens. As a rule, you’re good to install if:
A=Roof rack height above the vehicle
B=Tailgate open height
B < A + 2.5 cm
If you’re unsure, send us your vehicle model and roof rack setup — we’ll help confirm fitment.

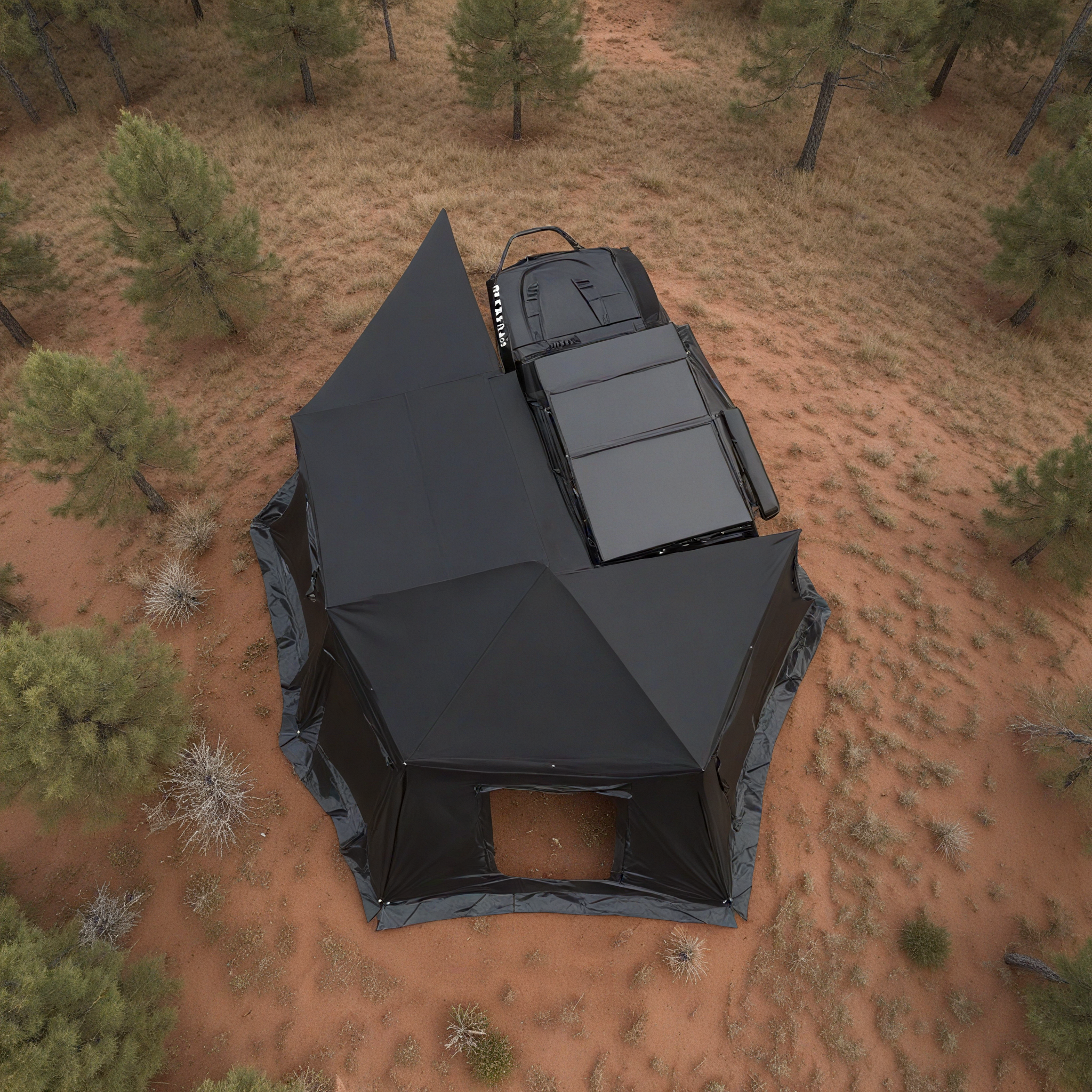

270 AWNING PLUS SIDE WALL
Shielding you from the sun in summer, and from wind and rain in winter.
How to pack away my awning
When you roll the awning back, push each hinged arm toward the housing so the fabric and zipper stay aligned — this prevents the canvas from bunching and makes the zipper easy to close.
Tip: do one arm at a time and don’t force the zipper; realign and try again.
